Neousys

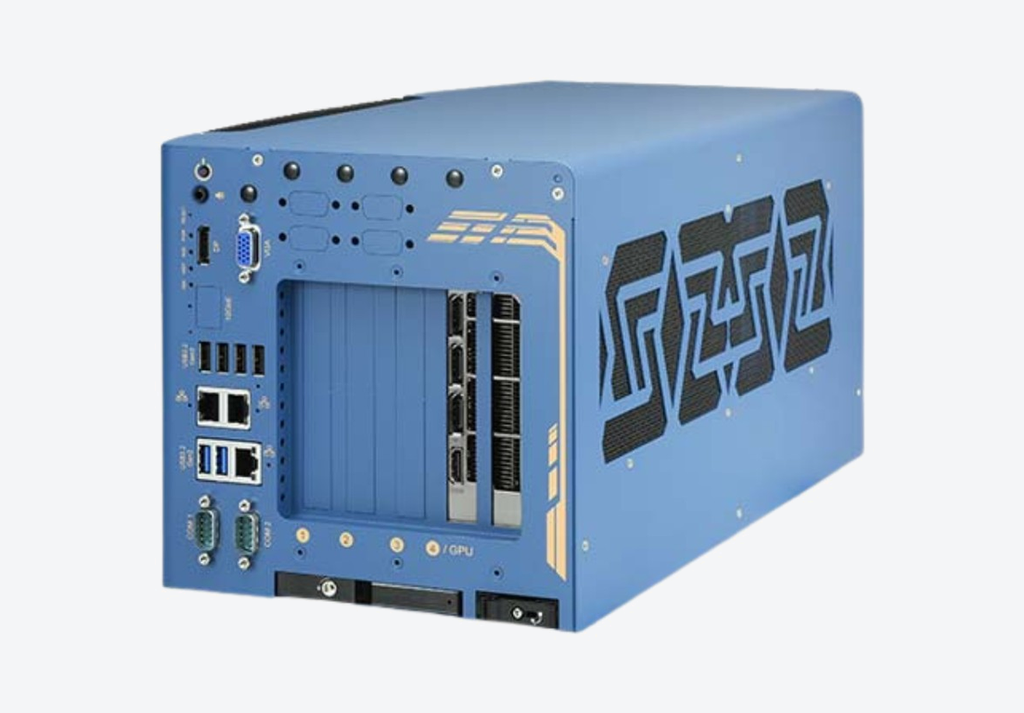

Nuvo-10108GC Industrial Edge AI Computer

Name: Neousys | Nuvo-10108GC Industrial Edge AI Computer
Brand: Neousys
SKU: LEO-1086

Edge AI computer for one 350 W NVIDIA RTX GPU (up to 100 TFLOPS FP32), Intel 14th-Gen Core and up to 128 GB DDR5, rated for -25 to 60 °C.

Neousys | Nuvo-10108GC Industrial Edge AI Computer

Edge AI computer for one 350 W NVIDIA RTX GPU (up to 100 TFLOPS FP32), Intel 14th-Gen Core and up to 128 GB DDR5, rated for -25 to 60 °C.

Datasheet User Manual All Downloads (3)Support

Downloads

DatasheetNuvo-10108GC – Datasheet User ManualNuvo-10108GC – User Manual (Rev 2)SoftwareNuvo-10108GC – Drivers (Neousys)

Neousys Nuvo-10108GC Series is an industrial-grade Edge AI platform designed to support a single 350W NVIDIA® RTX™ GPU and Intel® 14th/13th/12th-Gen Core™ processors. Offering up to 100 TFLOPS of GPU performance and rugged -25°C to 60°C operation, it is used for autonomous driving and AI factory automation. Nuvo-10108GC has three additional PCIe slots and 6x USB 3.2 and 2.5GbE ports.

What Is the Nuvo-10108GC Series Used For?

Typical applications of the Nuvo-10108GC Series include:

In-vehicle AI inference for autonomous driving development
Real-time sensor fusion of lidar, radar and camera data
Machine vision and industrial AI inspection
Mobile robotics and AGV compute platforms
Edge deployment of deep learning models in harsh environments

Explore More at Leo Drive

The Nuvo-10108GC Series is part of the Edge AI GPU Computers range at Leo Drive. Browse all autonomous vehicle sensors and components, or talk to our engineering team about integration in your project.

Nuvo-10108GC Series Technical Specifications

System Core
Processor	Supporting Intel® 14th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP) Intel® Core™ i9-14900/ i9-14900T Intel® Core™ i7-14700/ i7-14700T Intel® Core™ i5-14500/ i5-14400/ i5-14500T Intel® Core™ i3-14100/ i3-14100T Supporting Intel® 13th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP) Intel® Core™ i9-13900E/ i9-13900TE Intel® Core™ i7-13700E/ i7-13700TE Intel® Core™ i5-13500E/ i5-13400E/ i5-13500TE Intel® Core™ i3-13100E/ i3-13100TE Support Intel® 12th-Gen Core™ CPU (LGA1700 socket, 35W/ 65W TDP) Intel® Core™ i9-12900E/ i9-12900TE Intel® Core™ i7-12700E/ i7-12700TE Intel® Core™ i5-12500E/ i5-12500TE Intel® Core™ i3-12100E/ i3-12100TE Intel® Pentium® G7400E/ G7400TE Intel® Celeron® G6900E/ G6900TE
Chipset	Intel® R680E Platform Controller Hub
Graphics	Integrated Intel® UHD Graphics 770 (32EU) / 730 (24EU)
GPU Support	One NVIDIA® RTX™ series GPU card up to 350 W. The standard GPU locking bracket fits NVIDIA® RTX PRO 4000, RTX PRO 4500, RTX PRO 5000 and RTX PRO 6000 Max-Q and other selected cards.
GPU performance	Up to 100 TFLOPS (FP32)
Memory	Up to 128GB ECC/ non-ECC DDR5 4800 SDRAM (up to 2x 64GB SODIMM modules)
AMT	Supports Intel vPro/ AMT 16.0
TPM	Supports dTPM 2.0
I/O Interface
Ethernet	2x 2.5G Ethernet by I226-IT and 1x Gigabit Ethernet by I219-LM
10G Ethernet (optional)	1x 10GBASE-T port by Marvell AQC113CS, supporting NBASE-T (5G/ 2.5G) and 1000BASE-T (Optional)
USB	6x USB 3.2 Gen2x1 (10 Gbps) ports 1x USB 2.0 ports (internal for dongle use)
Serial Port	2x software-programmable RS-232/ 422/ 485 ports (COM1/COM2)
Video Port(Integrated Graphics)	1x VGA connector, supporting 1920 x 1200 resolution 1x DisplayPort connector, supporting 4096 x 2304 resolution
Audio	1x 3.5 mm jack for mic-in and speaker-out
Storage Interface
SATA HDD	1x front-accessible, hot-swappable HDD trays for 2.5" HDD/ SSD installation
M.2	1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD 1x front-accessible M.2 2280 M key tray (PCIe Gen4 x4) for NVMe SSD (Optional)
Expansion Bus
PCI Express	1x PCIe x16 slot @Gen4, 16-lanes with 65 mm slot width. The standard GPU locking bracket is designed for NVIDIA® RTX™ Pro 4000, 4500, 5000, 6000 Max-Q, and other selected GPU cards. 3x PCIe x8 slots @Gen3, 4-lanes
mini-PCIe	2x full-size mini PCI Express sockets with internal SIM sockets
M.2	1x M.2 2242/3052 B key socket with internal SIM sockets
Power Supply
DC Input	3-pin + 4-pin pluggable terminal block for 8V to 48V DC input with ignition control
Mechanical
Dimension	214 mm (W) x 400 mm (D) x 196 mm (H) (without damping bracket)
Weight	6.2 kg (excluding damping bracket)
Mounting	Wall-mount with damping brackets
Environmental
Operating Temperature	With 35W CPU and NVIDIA® 350W GPU -25°C to 60°C with 65W CPU and NVIDIA® 350W GPU -25°C ~ 60°C(with optional fan kit) -25°C ~ 50°C(without optional fan kit)
Storage Temperature	-40°C ~ 85°C
Humidity	10%~90% , non-condensing
Vibration	MIL-STD-810H, Method 514.8, Category 4 (with damping bracket)
Shock	MIL-STD-810H, Method 516.8, Procedure I (with damping bracket)
EMC	CE/FCC Class A, according to EN 55032 & EN 55035
