Neousys

NRU-240S-AWP

Name: Neousys | NRU-240S-AWP
Brand: Neousys
SKU: LEO-1186

IP66 waterproof AI computer with NVIDIA Jetson AGX Orin (up to 275 TOPS), 8 GMSL2 camera inputs and 4 PoE+ ports, for agriculture, mining and outdoor robots.

Neousys | NRU-240S-AWP

IP66 waterproof AI computer with NVIDIA Jetson AGX Orin (up to 275 TOPS), 8 GMSL2 camera inputs and 4 PoE+ ports, for agriculture, mining and outdoor robots.

Request datasheet Support

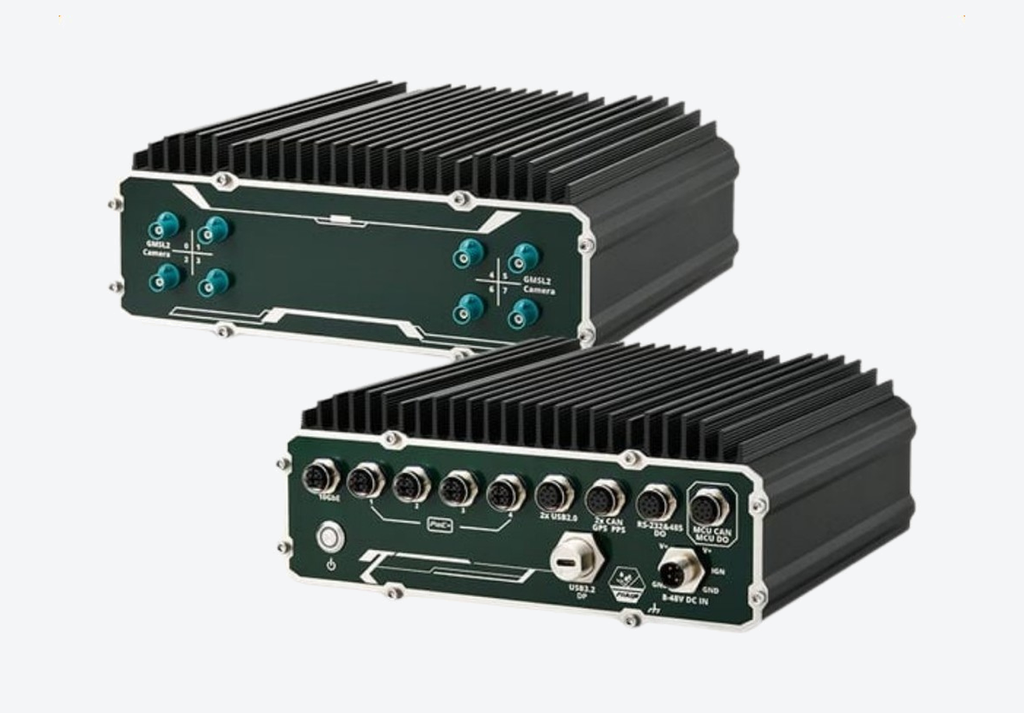

NRU-230V-AWP/NRU-240S-AWP is a rugged, IP66-rated waterproof AI computer powered by NVIDIA® Jetson AGX Orin, designed for harsh environments such as industrial sites, agriculture, mining, and transportation. It delivers up to 275 sparse TOPS (INT8) AI inference and can process up to 22 simultaneous 1080P video streams. Equipped with 4x M12 PoE+ GbE and 8x GMSL2 FAKRA ports, it supports a wide range of industrial and automotive cameras. It features a waterproof 10GbE port, a 4K DisplayPort output, and a versatile connectivity suite including CAN bus, RS232, RS485, and 5G/4G support. With wide-range DC input (8V-48V) and robust storage options, it ensures high performance in extreme conditions, making it ideal for industrial vehicles, AMRs, edge inspection, and roadside applications.

What Is the NRU-230V-AWP/NRU-240S-AWP Used For?

Typical applications of the NRU-230V-AWP/NRU-240S-AWP include:

In-vehicle AI inference for autonomous driving development
Real-time sensor fusion of lidar, radar and camera data
Machine vision and industrial AI inspection
Mobile robotics and AGV compute platforms
Edge deployment of deep learning models in harsh environments

Frequently Asked Questions

What is the NRU-230V-AWP/NRU-240S-AWP?

Can the NRU-230V-AWP/NRU-240S-AWP run autonomous driving software stacks?

Yes. The NRU-230V-AWP/NRU-240S-AWP is built for in-vehicle and edge AI workloads — GPU-accelerated inference, multi-sensor data acquisition and wide-temperature operation — making it suitable for autonomous driving development platforms and robotics compute.

Where is the NRU-230V-AWP/NRU-240S-AWP available?

The NRU-230V-AWP/NRU-240S-AWP is available through Leo Drive in the following region: Turkey. For other regions, please contact Leo Drive.

How can I get the datasheet and technical documents for the NRU-230V-AWP/NRU-240S-AWP?

Please contact Leo Drive to request the datasheet, user manual and other technical documents for the NRU-230V-AWP/NRU-240S-AWP.

Explore More at Leo Drive

The NRU-230V-AWP/NRU-240S-AWP is part of the Edge AI GPU Computers range at Leo Drive. Browse all autonomous vehicle sensors and components, or talk to our engineering team about integration in your project.

NRU-230V-AWP/NRU-240S-AWP Technical Specifications

	NRU-230V-AWP	NRU-240S-AWP
System Core
Processor	NVIDIA® Jetson AGX Orin™ system-on-module (SOM), comprising NVIDIA® Ampere GPU and Arm Cortex-A78AE CPU
Memory	32GB/ 64GB LPDDR5 (JAO 32GB/ JAO 64GB) @ 3200 MHz on SOM
eMMC	64GB eMMC 5.1 on SOM
Panel I/O Interface
GMSL Camera	8x GMSL2 FAKRA Z connectors Configuration A. 8x AC-IMX390 (2MP@30FPS) Configuration B. 8x AC-ISX031 (3MP@30FPS) Configuration C. 8x AC-IMX490 (5MP@30FPS)
Ethernet Port	Port 1 to Port 4: 4x Gigabit Ethernet ports by Intel® I350 via M12 X-coded 8-pin connector Port 5: 1x 10 Gigabit Ethernet port via M12 X-coded 8-pin connector
PoE Capability	IEEE 802.3at PoE+ PSE for Port 1 to Port 4, 100 W total power budget
USB 2.0	2x USB 2.0 ports via M12 A-coded 8-pin connector
USB 3.2 + Video Port	1x waterproof USB Type C (USB 3.2 Gen1 and 1x DisplayPort, supporting 3840x2160 at 60Hz)
Serial Port + DO	1x isolated RS-485, 1x RS-232, and 1x isolated DO via M12 A-coded 8-pin connector
CAN Bus + DI	2x isolated CAN 2.0, and 1x isolated DI (GPS PPS input) via M12 A-coded 8-pin connector
System Monitoring	1x isolated CAN 2.0 port and 1x isolated DO via M12 A-coded 8-pin connector by automotive-grade MCU
Internal I/O Interface
Mini PCI Express	1x full-size mini PCI Express socket (PCIe + USB 2.0) for WiFi 6 or CAN 1x full-size mini PCI Express socket (USB 2.0) for GNSS or 4G LTE
M.2	1x M.2 3042/ 3052 B key (USB 3.1 Gen 1 + USB 2.0) for LTE/ 5G module with dual micro SIM support
Storage
SATA HDD	2x internal SATA ports for 2.5" SSD installation
M.2 NVMe	1x M.2 2280 M key NVMe socket (PCIe Gen4x2) for NVMe SSD
Power Supply
DC Input	8V to 48V DC input and ignition power control via M12 L-coded, 5-pin connector *
Mechanical
Dimension	225 mm (W) x 194 mm (D) x 88.5 mm (H) (without rubber feet) 225 mm (W) x 194 mm (D) x 89.5 mm (H) (with rubber feet)
Weight	4.4kg (excluding wall-mount bracket)
Mounting	Wall-mount bracket (standard)
Environmental
Operating Temperature	Operating Temperature -25°C to 70°C (JAO32 or JAO64 30W TDP mode, without 10GbE transmission and PoE Load) [2] -25°C to 60°C (JAO32 or JAO64 30W TDP mode, with full function) -40°C to 70°C (JAOi 35W TDP mode, without 10GbE transmission and PoE Load) [2] -40°C to 60°C (JAOi 35W TDP mode, with full function) With full CPU+GPU stressing: 1. NRU-230V-AWP non-throttling at 65C with 30W TDP mode 2. NRU-230V-AWP non-throttling at 55C with 60W TDP mode (JAO64 MAXN) 3. NRU-230V-AWP non-throttling at 50C with 75W TDP mode (JAOi MAXN)
Storage Temperature	-40°C to 85°C
Humidity	10%~90% , non-condensing
Vibration	MIL-STD-810H, Method 514.8, Category 4
Shock	MIL-STD-810H, Method 516.8, Procedure I
EMC	CE/ FCC Class A, according to EN 55032 & EN 55035
