Neousys

NRU-171V-PPC

Name: Neousys | NRU-171V-PPC
Brand: Neousys
SKU: LEO-1257

IP66 waterproof 10.1" AI panel PC powered by NVIDIA® Jetson Orin™ NX / Nano with GMSL2 camera inputs, rated -25°C to 60°C.

Neousys | NRU-171V-PPC

IP66 waterproof 10.1" AI panel PC powered by NVIDIA® Jetson Orin™ NX / Nano with GMSL2 camera inputs, rated -25°C to 60°C.

Datasheet Support

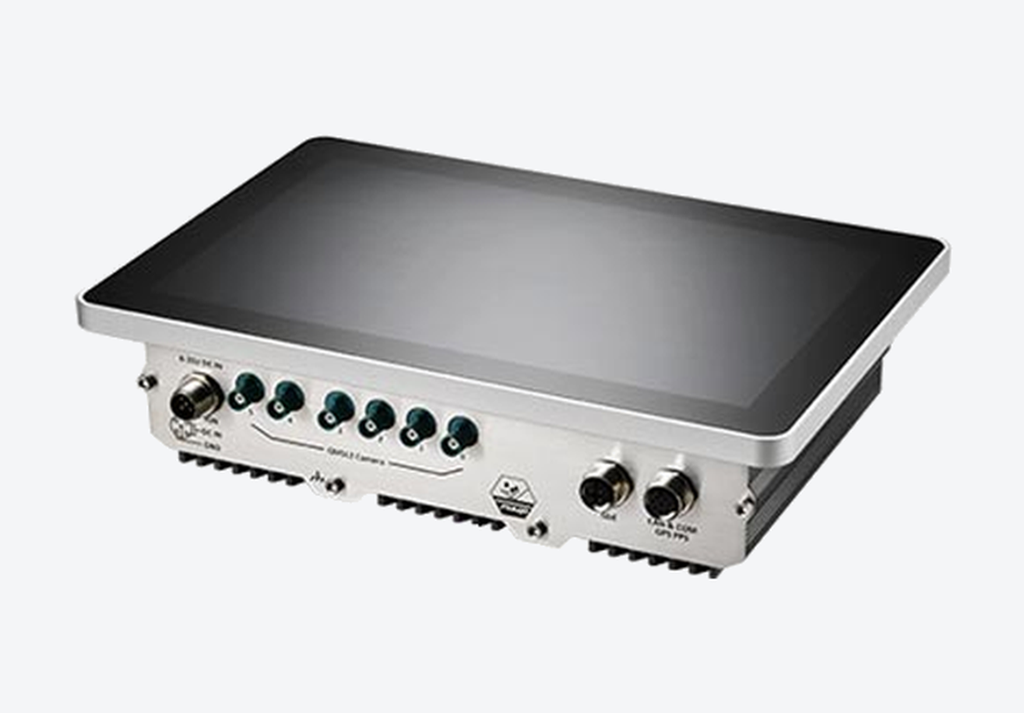

The NRU-171V-PPC is an IP66-rated 10.1" AI panel PC powered by NVIDIA® Jetson Orin™ NX or Orin™ Nano, delivering up to 100 TOPS of AI processing. It is aimed at edge AI applications that need water resistance together with human-machine interaction: ADAS for off-highway vehicles, autonomous marine vessels, AI-driven inspection in food processing, smart livestock management and precision agriculture.

With the Jetson Orin™ NX the unit reaches up to 100 sparse TOPS (INT8) and can transcode up to 18 simultaneous 1080P video streams. Waterproofing is achieved at a competitive price through a refined mechanical design, selected waterproof connectors and standardised cable kits.

The 10.1" display runs at 1920 x 1200 with 1000 cd/m² brightness and a 1000:1 contrast ratio, and retains single-finger touch when the screen is wet.

Technical Specifications

System Core
Processor	NVIDIA® Jetson Orin™ NX system-onmodule (SOM), comprising NVIDIA® Ampere GPU and ARM Cortex CPU NVIDIA® Jetson Orin™ Nano systemon-module (SOM), comprising NVIDIA® Ampere GPU and ARM Cortex CPU
GPU performance	Up to 100 TOPS (INT8, sparse)
Memory	16GB/ 8GB LPDDR5 @ 3200 MHz on SOM 8GB/ 4GB LPDDR5 @ 2133 MHz on SOM
eMMC	N/A
Panel
Touch Screen	10.1" touch screen with 1920 x 1200 resolution, 1000 cd/m2 brightness, and 1000:1 high contrast ratio. (Single-finger touch capability when screen is wet)
Panel I/O Interface
GMSL2	NRU-171V-PPC 6x waterproof GMSL2 FAKRA Z connectors, supporting multiple configurations: Configuration A. 6x AC-IMX390 (2MP@30FPS) Configuration B. 6x AC-ISX031 (3MP@30FPS) Configuration C. 4x AC-IMX490 (5MP@30FPS)
Ethernet Port	NRU-171V-PPC 1x Gigabit Ethernet port via M12 X-coded 8-pin connector NRU-172S-PPC Port 0: 1x Gigabit Ethernet port via M12 X-coded 8-pin connector Port 1 to Port 4: 4x GbE ports by Intel® I350-AM4 via M12 X-coded 8-pin connector
PoE+	NRU-172S-PPC IEEE 802.3at PoE+ PSE for Port 1 to Port 4 with 50W total power budget
USB	2x USB 2.0 ports via M12 A-coded 8-pin connector 1x USB Type C port (for system flashing and OTG, under service door)
Serial Port	1x RS-232 port via M12 A-coded 8-pin connector
CAN bus	1x CAN FD port via M12 A-coded 8-pin connector
Isolated DIO	1x isolated GPS PPS input via M12 A-coded 8-pin connector
Internal I/O Interface
Mini PCI Express	1x full-size mini PCI Express socket (PCIe + USB 2.0)
M.2	1x M.2 3042/3052 B key (USB 3.2 Gen 1 + USB 2.0) for LTE/5G module with dual micro SIM support
Storage
M.2 NVMe	1x M.2 2242 M key socket (PCIe Gen 3x1) for NVMe SSD
Power Supply
DC Input	8V to 35V DC input and ignition power control via M12 A-coded, 5-pin connector (IGN/ GND/ V+)
Mechanical
Dimension	257 mm (W) x 65 mm (D) x 176 mm (H)
Weight	3.8 kg
Mounting	VESA 75 mount (standard)
Environmental
Operating Temperature	-25°C to 60°C with passive cooling (MAXN TDP mode) With full CPU+GPU stressing: NRU-170-PPC non-throttling at 60°C with 25W TDP mode (Orin NX MAXN)
Storage Temperature	-40°C ~ 85°C
Humidity	10%~90% , non-condensing
Vibration	MIL-STD-810H, Method 514.8, Category 4
Shock	MIL-STD-810H, Method 516.8, Procedure I
EMC	CE/ FCC Class A, according to EN 55032 & EN 55035 EN 50121-3 (EN 50155:2017, Clause 13.4.8) (NRU-172S-PPC only)
