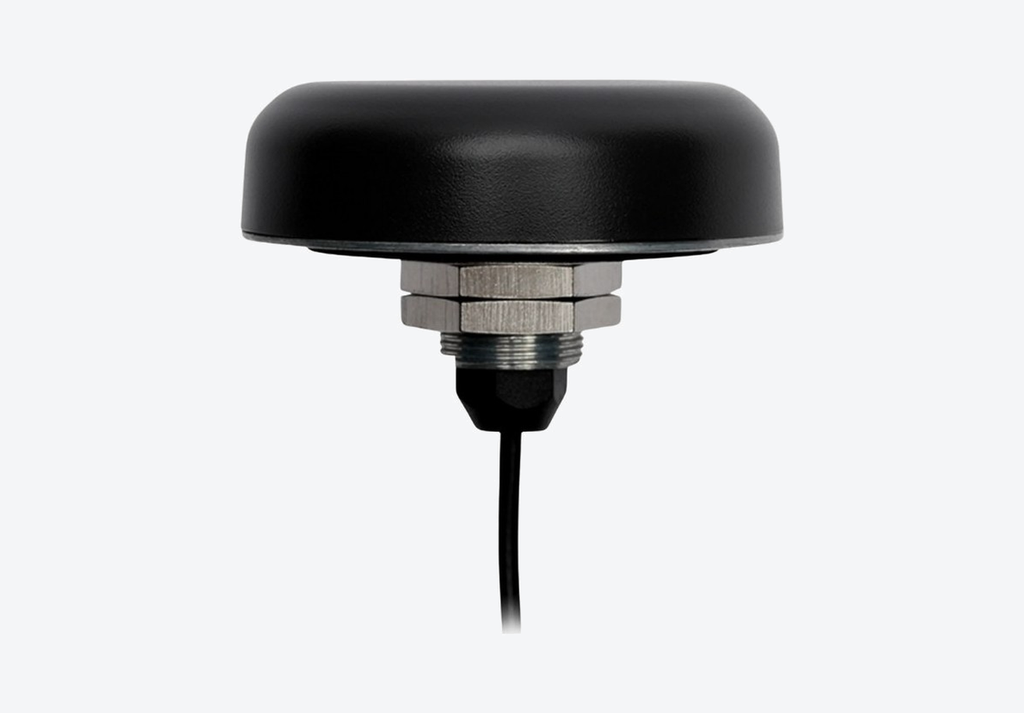

TW5387 High-Precision Smart GNSS Antenna with IMU, ST TESEO V

Calian TW5387 Smart GNSS UDR Antenna is designed for high-accuracy rover positioning, featuring multi-band GNSS (L1/L5), RTK, and an IMU for Untethered Dead Reckoning (UDR). It provides sub-meter accuracy standalone and centimeter-level accuracy with RTK corrections, for autonomous vehicles, precision agriculture and similar applications. It sits in a rugged IP69K-rated enclosure.

Why Choose the TW5387 High-Precision Smart GNSS Antenna with IMU, ST TESEO V?

• Improved noise immunity with multi-band ST TESEO V GNSS Receiver chipset (Quectel)

• On-board Inertial Measurement Unit (UDR and ADR – wheelticks) provides continuous availability during periods of signal loss

• Improved multi-path rejection with Dual feed L1/L5 Accutenna®

• Multi-band GNSS receiver is resilient to ionospheric errors

• High reliability timing with expansive constellation array

• Standalone positioning without correction services

• Broad 5V-36V operation

• RS-422 differential or RS-232 signaling

• Industrial grade IP69K enclosure

• Rugged fixed mount

• Multiple cable lengths (5m, 15m and 25m)

• Available with conical radome

What Is the TW5387 High-Precision Smart GNSS Antenna with IMU, ST TESEO V Used For?

Typical applications of the TW5387 High-Precision Smart GNSS Antenna with IMU, ST TESEO V include:

• Precision agriculture guidance and auto-steering

• Machine control for construction and mining equipment

• Autonomous vehicles and mobile robotics

• Marine positioning and heading

• Fleet management and telematics

Part numbers

Part Number: 33-5387-07-yy-zz-PC0 (RJ45; Data and Timepulse: RS-422, PC0 = NMEA out, no adaptor cable.)

Part Number:33-5387-27-yy-zz-PC0 (RJ45; Data: RS-232, Timepulse RS-422, PC0 = NMEA out, no adaptor cable.)

Where:

yy = Radome (00=grey conical, 10-grey low profile, 01-white conical, 11=white low profile)

zz = Cable length in meters. Standard is 5m. (15m and 25m are special order only)

33-5387-07-yy-zz-PC0 SDK Test Adaptor required for programming - 33-0095-10

33-5387-27-yy-zz-PC0 SDK Test Adaptor required for programming - 33-0095-13

Please refer to Tallysman's Ordering Guide to review available radomes and connectors at: https://www.tallysman.com/resource/tallysman-ordering-guide/
