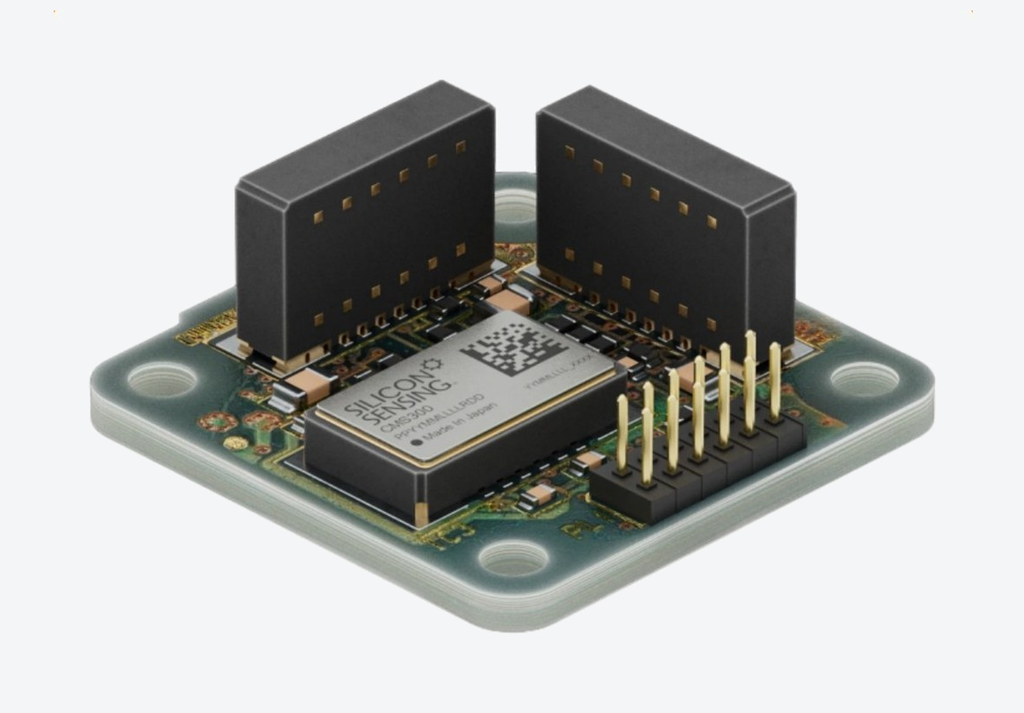

DMU11 IMU Sensor

Silicon Sensing DMU11 IMU Sensor is a high-precision MEMS-based Inertial Measurement Unit designed for applications requiring low drift and high stability. Compact and light, DMU11 fits space-constrained systems in aerospace, marine and industry, including navigation systems.

Why Choose the DMU11 IMU Sensor?

• High performance six degrees of freedom (6-DOF) low cost MEMS IMU

• 7 sensor output:


  • Angular rate (x3)

  • Linear acceleration (x3)

  • Temperature

• Dynamic Range ±300°/s and ±10g

• Bias instability <10°/hr and 0.05mg

• Random Walk <0.4°/√hr and 0.05m/s/√hr

• Small (22 x 22.5 x 10.6mm)

• 3.2 to 5.25V Supply

• Wide operating temperature range -40°C to +85°C

• RS-422 Interface

• RoHS and REACH compliant

What Is the DMU11 IMU Sensor Used For?

• Machine control

• Antenna and Platform Stabilisation

• Precision Agriculture

• Autonomous Vehicles and ROVs

• Attitude Measurement Systems

• Personal Navigation

• GPS Aiding

Part numbers

Part Number: DMU11-21-0100

Bare PCB with four mounting holes, conformally coated.

Part Number: DMU11-21-0500

Customer evaluation kit (EVK) comprising a DMU11-21-0100, RS422 to USB Connector, USB Driver and Data Logging Software, Cables and Connectors, Instruction Manual

Part Number: 630486-0946

Optional mating socket connector and interconnected flying lead.
