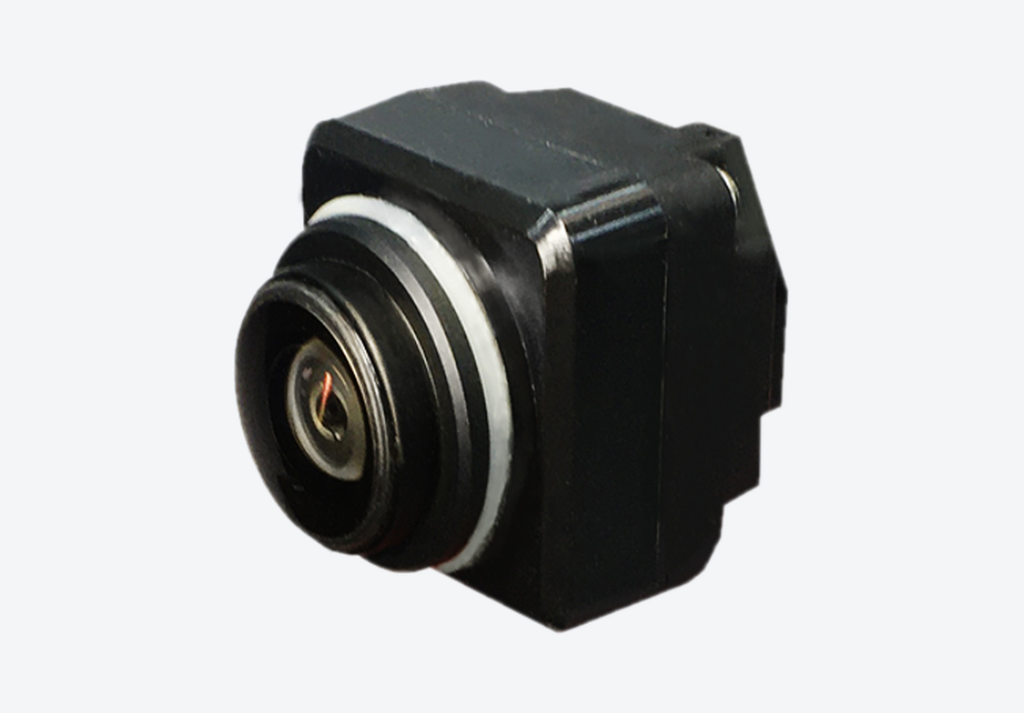

oToCAM204 / oToCAM206 Series 1MP FPD-Link III Camera (ISX019)
1 MP FPD-Link III automotive cameras with Sony ISX019, 120 dB HDR, 137° or 189° lenses, IP67, used in bus blind spot and door systems.
Sony ISX019 automotive sensor with built-in ISP, 1 MP, 120 dB HDR
FPD-Link III with power over coax (TI DS90UB913A), YUV422 output, FAKRA connector
oToCAM204 (1280 × 960) and oToCAM206 (1280 × 800): 189° fisheye; oToCAM206-L137T: 137°
oToCAM206 is the MOIS and forward BSIS camera of oToBrite's bus systems; oToCAM206-L137T is the SafeZone door camera
IP67, −40 °C to +85 °C
What Is the oToCAM204 / 206 Series Used For?
Typical applications of the oToCAM204 / 206 Series include:
Blind spot and moving off systems on buses and trucks
Lateral and rear monitoring
Surround view with fisheye lenses
Lens Options
Model | oToCAM204 | oToCAM206 | oToCAM206-L137T |
|---|---|---|---|
Horizontal field of view | 189.2° | 189° | 137° |
Vertical field of view | 150.8° | 131° | 107.6° |
Aperture | F2.0 | F2.0 | F2.0 +/-5 % |
Depth of field | 0.06 m to ∞ (focus 50 cm) | 0.06 m to ∞ (focus 50 cm) | 3 m to ∞ |
Dimensions (mm) | 28.6 × 24.6 × 23.2 | 24 × 24 × 28.2 | 24 × 24 × 28 |
Weight | 31 g | 17 g | 16.5 g |
Ordering
Pick the version next to the Add to Quote button; the request names the exact model. Lead time depends on stock and quantity, so we confirm it with the quote.
Frequently Asked Questions
Which model is used in the BSIS + MOIS system?
oToBrite uses the oToCAM206 for moving off and forward blind spot detection, and the oToCAM206-L137T in the SafeZone bus-door system.
Where is the oToCAM204 / 206 Series available?
The oToCAM204 / 206 Series is available through Leo Drive, an authorised oToBrite partner, in Türkiye and Switzerland. For other regions, please contact Leo Drive.
How can I get the datasheet for the oToCAM204 / 206 Series?
Download it with the Datasheet button on this page. For drivers, 3D models or samples, please contact Leo Drive.
