oToCAM162 / 163 / 165 / 167 HD-TVI Automotive Cameras
HD-TVI automotive cameras from oToBrite: 1 MP and 2 MP, 103° to 189° fields of view, 120 dB HDR, for reverse parking, around view and DVRs.

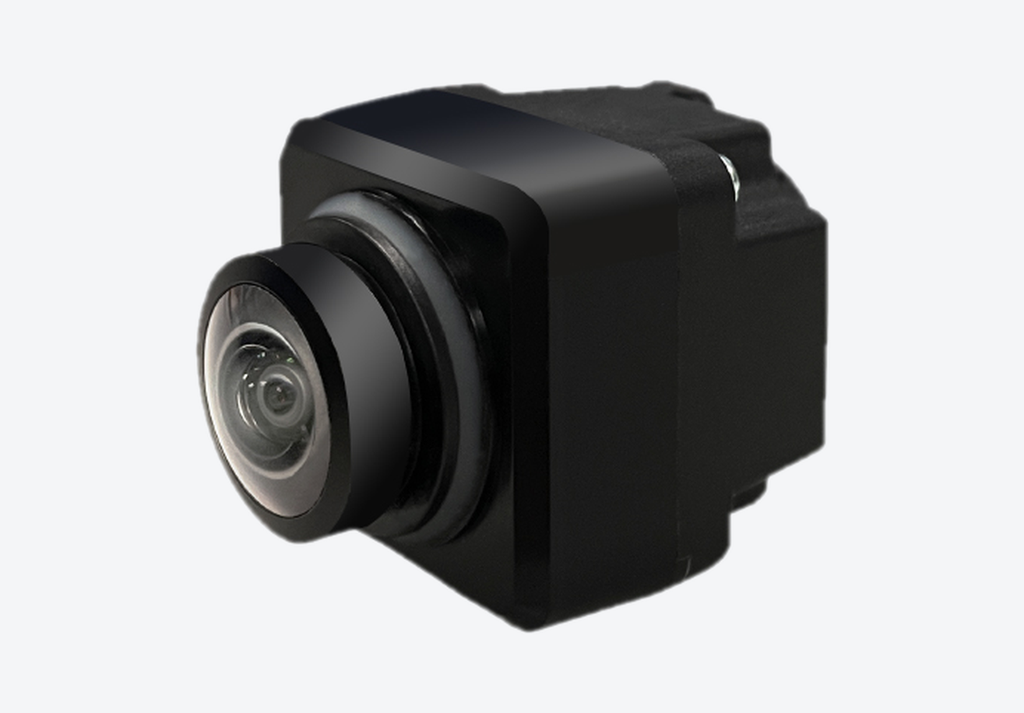

Automotive cameras with HD-TVI analog video over a single cable, for monitors and DVRs
oToCAM162: Sony ISX019, 1 MP (1280 × 800), 189° × 131°, 120 dB HDR
oToCAM163: OmniVision OV9716, 1 MP (1280 × 720), 184° × 118°, 120 dB HDR; the camera of oToBrite's Rear View & RCTA system
oToCAM165: OmniVision OV9716, 1 MP, 123° × 73°, 120 dB HDR
oToCAM167-C103V: SOI JX-A03, 2 MP (1920 × 1080), 103° × 57°
Compact 23 × 23 mm housing, −40 °C to +85 °C
What Is the oToCAM16x HD-TVI Cameras Used For?
Typical applications of the oToCAM16x HD-TVI Cameras include:
Reverse parking and around-view monitoring (162, 163)
Autonomous driving and DVR applications (165, 167)
Front, rear and side cameras
Lens Options
1 MP
Model | oToCAM162 | oToCAM163 | oToCAM165 |
|---|---|---|---|
Horizontal field of view | 189° | 183.6° | 122.5° |
Vertical field of view | 131° | 117.6° | 72.7° |
Aperture | F2.0 | F2.0 | F2.0 |
Depth of field | 0.06 m to ∞ (focus 50 cm) | 0.06 m to ∞ (focus 50 cm) | 0.2 m to ∞ |
Dimensions (mm) | 23 × 23 × 28.2 (w/o bracket) | 23 × 23 × 27.7 (w/o bracket) | 23 × 23 × 32.3 (w/o bracket) |
Weight | 26 g | 37.5 g | 36 g |
2 MP
Model | oToCAM167-C103V |
|---|---|
Horizontal field of view | 103.2° |
Vertical field of view | 56.7° |
Aperture | F2.0 |
Depth of field | 0.9 m to ∞ |
Dimensions (mm) | 23 × 23 × 45.7 (without bracket) |
Weight | 47.3 g |
Ordering
Pick the version next to the Add to Quote button; the request names the exact model. Lead time depends on stock and quantity, so we confirm it with the quote.
Frequently Asked Questions
Do these cameras need a GMSL or FPD-Link deserializer?
No. They send HD-TVI analog video that HD-TVI monitors, DVRs and video decoders take directly.
Where is the oToCAM16x HD-TVI Cameras available?
The oToCAM16x HD-TVI Cameras is available through Leo Drive, an authorised oToBrite partner, in Türkiye and Switzerland. For other regions, please contact Leo Drive.
How can I get the datasheet for the oToCAM16x HD-TVI Cameras?
Download it with the Datasheet button on this page. For drivers, 3D models or samples, please contact Leo Drive.
