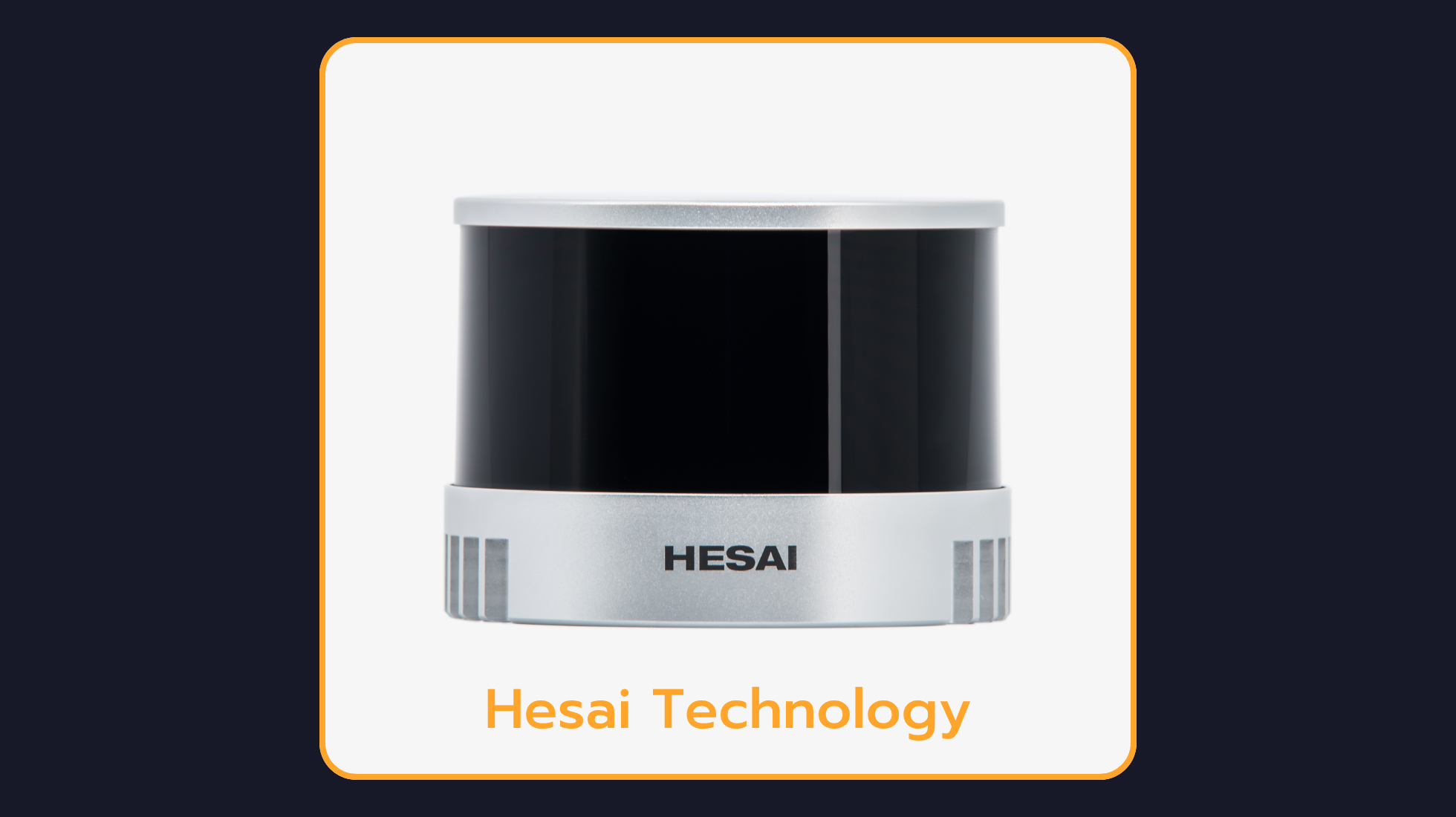

Hesai Technology XT32 High-Precision 360° x 31° Mid-Range Lidar
For High-Precision Mid-Range Perception
Hesai's XT32 is a compact 32-channel mechanical lidar sensor designed for mid-range perception in autonomous vehicles, robotics, mapping systems, and industrial automation. It offers a 360° horizontal and 31° vertical field of view, delivering up to 1.39 million points per second in dual-return mode. With ±3 cm range accuracy and a detection range of up to 200 meters, XT32 ensures detailed and reliable 3D environmental awareness. It supports horizontal resolutions between 0.2° and 0.5°, providing flexibility for various applications. Built to endure harsh conditions, it operates in –40°C to 75°C temperatures and is rated IP6K7/IP6K9K for water and dust resistance. XT32 balances high performance, durability, and compact design — ideal for real-time navigation, obstacle detection, and mapping.
XT32 High-Precision 360° x 31° Mid-Range Lidar Technical Specifications
Range | 0.05 to 120 m 80 m @10% reflectivity (Channels 5 to 12) 50 m @10% reflectivity (Channels 1 to 4, 13 to 16) |
Number of channels | 32 |
Detection Range Accuracy | ±1 cm (typical) ±2 cm (standard) |
Detection Range Precision | 0.5 cm (typical, 1σ) 2 cm (standard) |
Horizontal FOV | 360° |
Horizontal resolution | 0.09° (5 Hz) 0.18° (10 Hz) 0.36° (20 Hz |
Vertical FOV | 31° (–16° to +15°) |
Vertical resolution | 1° |
Frame rate | 5 Hz, 10 Hz, 20 Hz |
Mechanical/Electrical | |
Power | 10 W |
Operating Voltage | DC 9 to 36 V |
Dimensions | Height: 76.0 mm (side connector) / 83.0 mm (bottom connector) Top/bottom: Φ100.0/103.0 mm |
Weight | 0.8 k |
Why Choose the XT32 High-Precision 360° x 31° Mid-Range Lidar?
Double the resolution and number of lasers compared with typical mid-range lidars
High Precision
High-Quality Reflectivity Information
DV tests based on international OEM standards; covered more than 50 reliability tests. Designed lifetime is over 30,000 hours (typical).
What Is the XT32 High-Precision 360° x 31° Mid-Range Lidar Used For?
Typical applications of the XT32 High-Precision 360° x 31° Mid-Range Lidar include:
Autonomous vehicles, robotaxis and shuttle perception systems
ADAS development, validation and data collection vehicles
Mobile robotics, AGVs, AMRs and delivery robots
Smart infrastructure, V2X and roadside perception units
HD mapping, surveying and digital-twin data acquisition
Frequently Asked Questions
What is the XT32 High-Precision 360° x 31° Mid-Range Lidar?
Hesai's XT32 is a compact 32-channel mechanical lidar sensor designed for mid-range perception in autonomous vehicles, robotics, mapping systems, and industrial automation. It offers a 360° horizontal and 31° vertical field of view, delivering up to 1.39 million points per second in dual-return mode.
Is the XT32 High-Precision 360° x 31° Mid-Range Lidar suitable for autonomous vehicle projects?
Yes. The XT32 High-Precision 360° x 31° Mid-Range Lidar produces real-time 3D point cloud data used for object detection, obstacle avoidance and localization in autonomous driving and robotics stacks, and it integrates with common perception frameworks such as ROS-based pipelines and Autoware.
Where is the XT32 High-Precision 360° x 31° Mid-Range Lidar available?
The XT32 High-Precision 360° x 31° Mid-Range Lidar is available through Leo Drive in the following region: Turkey. For other regions, please contact Leo Drive.
How can I get the datasheet and technical documents for the XT32 High-Precision 360° x 31° Mid-Range Lidar?
Please contact Leo Drive to request the datasheet, user manual and other technical documents for the XT32 High-Precision 360° x 31° Mid-Range Lidar.
