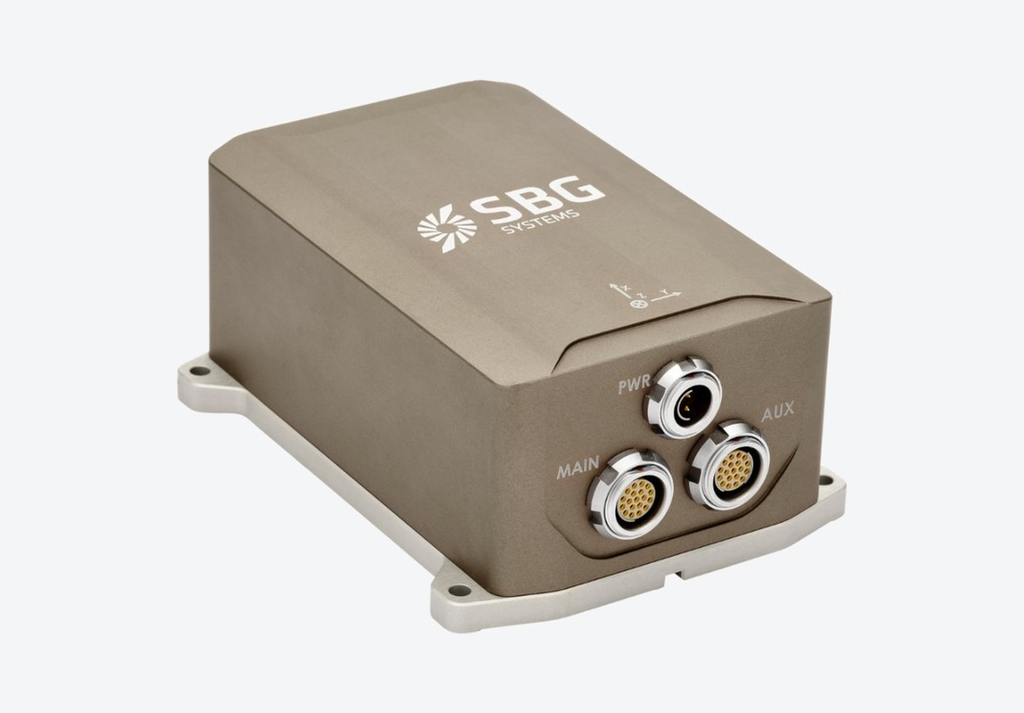

Apogee-A: Accurate Orientation & Heave AHRS/MRU Solution
AHRS and MRU with 0.01° roll/pitch, 0.02° heading, 5 cm real-time heave and under 7 µg accelerometer bias, for motion compensation and survey.
Apogee-A belongs to Apogee series line of high performance, MEMS-based Inertial Systems which deliver exceptional orientation data in a compact package. It includes an Inertial Measurement Unit (IMU) and runs exclusive Extended Kalman Filter (EKF) algorithms.
Ordering Options
Ordering options for SBG Systems' Apogee-A
CA-AEK-PWR-3M | 3 meters sealed power cable
CA-AEK-MAIN-ETH-2.5M | 2.5 meters unsealed main cable that supports Ethernet communications (Fischer/RJ45)
CA-AEK-MAIN-RS232-3M | 3 meters sealed main cable that supports Ethernet, CAN and RS-232 communications (Fischer/Wire Ended)
CA-AEK-AUX-3M | 3 meters sealed auxiliary cable that supports RS-232 and RS-422 communications
Other Cable Options:
CA-AEK-MAIN-RS422-3M | 3 meters sealed main cable that supports Ethernet, CAN and RS-422 communications
CA-AEK-SPLIT-MAIN-0.5M | Ekinox/Apogee MAIN Split Cable: 0.5 meter sealed main cable splitter that supports, Ethernet (RJ45), CAN (DB9), SYNC IN A (SMA) and PORTA (DB9 with RS232 + SYNC OUT)
Frequently Asked Questions
What is the Apogee-A?
Apogee-A belongs to Apogee series line of high performance, MEMS-based Inertial Systems which deliver exceptional orientation data in a compact package. It includes an Inertial Measurement Unit (IMU) and runs exclusive Extended Kalman Filter (EKF) algorithms.
What is the difference between an AHRS and an IMU?
An IMU outputs raw angular rate and acceleration, while an AHRS such as the Apogee-A runs onboard sensor fusion to output ready-to-use roll, pitch and heading — no external estimation algorithm required.
Where is the Apogee-A available?
The Apogee-A is available through Leo Drive in the following region: Turkey. For other regions, please contact Leo Drive.
How can I get the datasheet and technical documents for the Apogee-A?
Please contact Leo Drive to request the datasheet, user manual and other technical documents for the Apogee-A.
