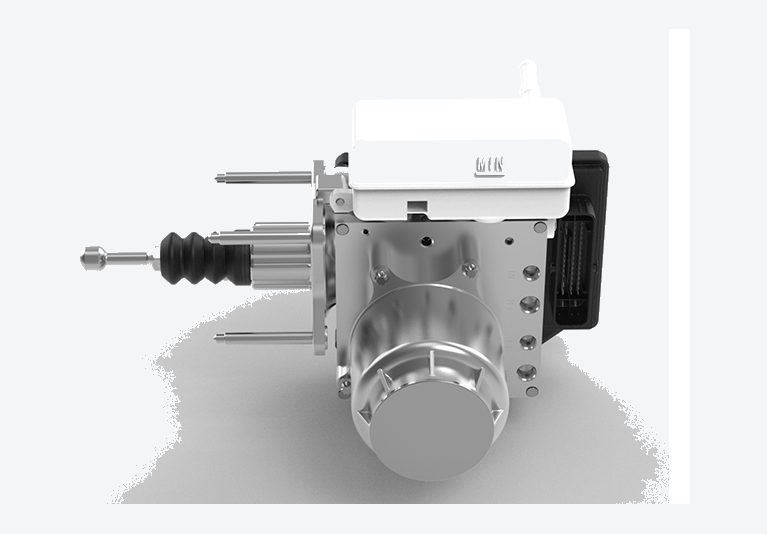

DHB-P Autonomous Vehicle Brake-by-Wire Solution

Name: Leekr | DHB-P Autonomous Vehicle Brake-by-Wire Solution
Brand: Leekr
SKU: LEO-1382

Leekr DHB-P Decoupled Hydraulic Brake-by-Wire System for autonomous vehicles with 510W motor, 160 bar max pressure, IP69 rating, and CAN 2.0.

Leekr | DHB-P Autonomous Vehicle Brake-by-Wire Solution

Leekr DHB-P Decoupled Hydraulic Brake-by-Wire System for autonomous vehicles with 510W motor, 160 bar max pressure, IP69 rating, and CAN 2.0.

Request datasheet Support

The Leekr DHB-P is an electrically controlled, fully decoupled hydraulic brake-by-wire system engineered as the "Safety Execution Hub" for autonomous vehicles, unmanned delivery platforms, cleaning robots, and electric towable RVs. Powered by a high-efficiency motor driving a Dual Actuation Plunger (DAP), DHB-P delivers millisecond-level dynamic response and integrates EPB control algorithms to eliminate traditional vacuum boosters.

More in Brake Actuators

DC Electronics BCU01 Pneumatic Brake Actuator

Leekr IHB-P Autonomous Vehicle Brake-by-Wire Solution

Not sure which one fits?

Tell us about your platform and our engineers will propose the right setup and quote it.

Talk to an engineer See all Brake Actuators

Key Performance Specifications
Maximum Motor Power	510 W
Maximum Pressure	160 bar
Maximum Pressure Rate	500 bar/sec @ 20–100 bar
Pressure Execution Accuracy	±2 bar @ 100 bar
Maximum Liquid Consumption	< 18 ccm
Reservoir Structure & Volume	Single Chamber, 311 ccm
Brake Fluid Compatibility	DOT3 / DOT4 / DOT5.1 (FMVSS 116 compliant)
Waterproof Protection Rating	IP69
Electrical & ECU Specifications
Communication Interface	Standard CAN 2.0
System Operating Voltage	9 – 18 V
ECU Operating Voltage	6 – 27 V
Operating Current (Steady State)	< 50 A
In-Rush Peak Current	100 A Max
Standby Current (IGN ON, idle)	< 300 mA
Quiescent Current (Sleep)	< 200 µA
Integrated Sensors	1× DAP Pressure Sensor (BPS), 1× Motor Position Sensor (MPS), 1× Brake Fluid Level Sensor (BFLS)
Mechanical & Installation Interface
Mounting Pattern	4× M8 × 1.25 studs (72 mm × 72 mm pattern) on interior firewall
Maximum Tilt Angle	≤ 15°
Bolt Tightening Torque	24 ± 3 Nm (diagonal sequence)
Hydraulic Pipe Tightening Torque	19 ± 2 Nm
Main Electrical Connector	EUCON 46-pin (Bosch 1928405782 / 1928498807)
Level Sensor Connector	2-pin Female Type 0436605
