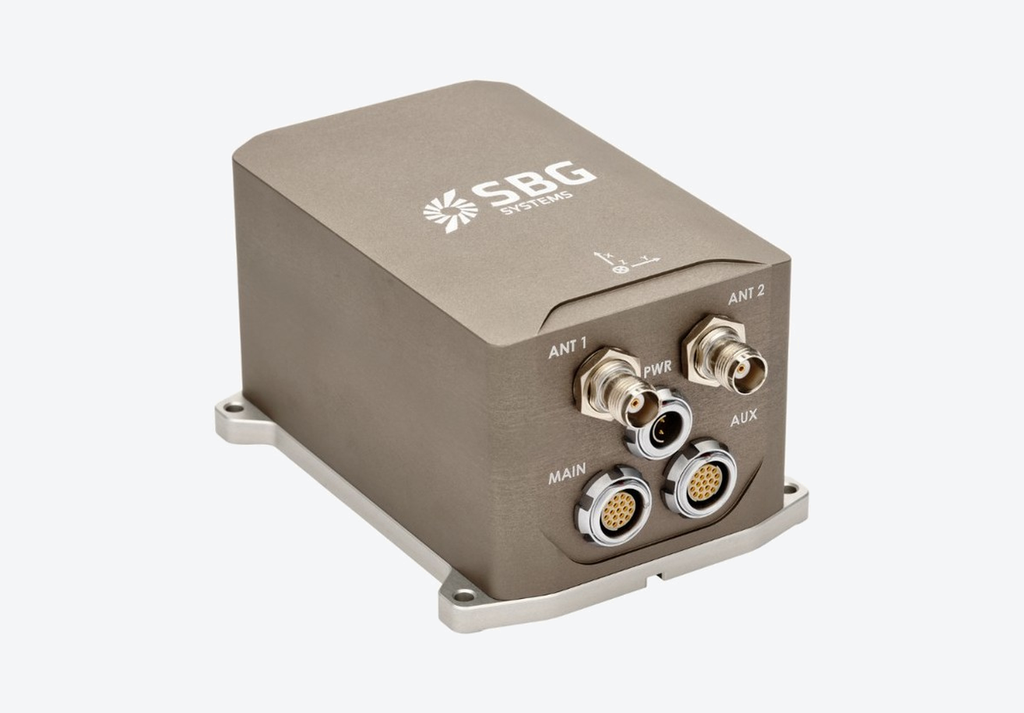

Apogee-D: INS/GNSS for Compact Spaces

Name: SBG Systems | Apogee-D: INS/GNSS for Compact Spaces
Brand: SBG Systems
SKU: LEO-1307

Dual-antenna INS/GNSS: 0.01° roll/pitch and 0.02° heading at 2 m baseline, 30 µg bias instability, compact and cost-effective for survey and mapping.

SBG Systems | Apogee-D: INS/GNSS for Compact Spaces

Dual-antenna INS/GNSS: 0.01° roll/pitch and 0.02° heading at 2 m baseline, 30 µg bias instability, compact and cost-effective for survey and mapping.

Datasheet Support

The Apogee-D is part of the Apogee series of high-performance MEMS-based inertial systems, offering outstanding orientation and navigation capabilities in a compact and cost-effective design. This all-in-one INS/GNSS solution features an RTK and PPP-ready GNSS receiver, making it ideal for applications where space is at a premium but high performance is essential. SBG Systems' Apogee-D is a highly versatile inertial navigation system that can work in single or dual GNSS antenna modes, ensuring flexibility to meet various operational requirements.

Ordering Options

Ordering options for SBG Systems' Apogee-D

CA-AEK-PWR-3M | 3 meters sealed power cable
CA-AEK-MAIN-ETH-2.5M | 2.5 meters unsealed main cable that supports Ethernet communications (Fischer/RJ45)
CA-AEK-MAIN-RS232-3M | 3 meters sealed main cable that supports Ethernet, CAN and RS-232 communications (Fischer/Wire Ended)
CA-AEK-AUX-3M | 3 meters sealed auxiliary cable that supports RS-232 and RS-422 communications

Other Cable Options:

CA-AEK-MAIN-RS422-3M | 3 meters sealed main cable that supports Ethernet, CAN and RS-422 communications
CA-AEK-SPLIT-MAIN-0.5M | Ekinox/Apogee MAIN Split Cable: 0.5 meter sealed main cable splitter that supports, Ethernet (RJ45), CAN (DB9), SYNC IN A (SMA) and PORTA (DB9 with RS232 + SYNC OUT)

Antenna Options:

TW3972 | Triple Band Antenna with L-Band
TW7972 | Triple Band Antenna with L-band
VSP6037L | Verostar Survey Grade Antenna

Frequently Asked Questions

What is the Apogee-D: INS/GNSS for Compact Spaces?

Why use a GNSS-aided INS like the Apogee-D: INS/GNSS for Compact Spaces instead of GNSS alone?

A GNSS-aided INS fuses inertial measurements with satellite positioning, so the Apogee-D: INS/GNSS for Compact Spaces keeps delivering accurate position, roll, pitch and heading during GNSS outages — in tunnels, urban canyons or under jamming — where a standalone GNSS receiver would fail.

Where is the Apogee-D: INS/GNSS for Compact Spaces available?

The Apogee-D: INS/GNSS for Compact Spaces is available through Leo Drive in the following region: Turkey. For other regions, please contact Leo Drive.

How can I get the datasheet and technical documents for the Apogee-D: INS/GNSS for Compact Spaces?

Please contact Leo Drive to request the datasheet, user manual and other technical documents for the Apogee-D: INS/GNSS for Compact Spaces.

Explore More at Leo Drive

The Apogee-D: INS/GNSS for Compact Spaces is part of the Inertial Navigation Systems range at Leo Drive. Browse all autonomous vehicle sensors and components, or talk to our engineering team about integration in your project.

Apogee-D: INS/GNSS for Compact Spaces Technical Specifications

Motion & navigation performance - Aerospace Applications
	GNSS L1/L2/L5	RTK	PPK
Roll/Pitch	0.01°	0.008°	0.005°
Heading - Dual antenna (2m baseline)	0.02°	0.02°	0.01°
Heading - Dual antenna (4m baseline)	0.01°	0.01°	0.01°
Position (X/Y)	1.0 m	0.01 m + 0.5 ppm	0.01 m + 0.5 ppm
Altitude (Z)	1.0 m	0.015 m + 1 ppm	0.015 m + 1 ppm
Motion & navigation performance - Land Applications
	GNSS L1/L2/L5	RTK	PPK	RTK 60 sec outage	PPK 60 sec outage
Roll/Pitch	0.01°	0.008°	0.005°	0.012°	0.008°
Heading - Single antenna	0.03°	0.02°	0.01°	0.06°	0.025°
Position (X/Y)	1.0 m	0.01 m + 0.5 ppm	0.01 m + 0.5 ppm	0.5 m	0.1 m
Altitude (Z)	1.0 m	0.015 m + 1 ppm	0.015 m + 1 ppm	0.3 m	0.05 m
Motion & navigation performance - Marine Applications
	GNSS L1/L2/L5	RTK	PPK	RTK 60 sec outage	PPK 60 sec outage
Roll/Pitch	0.01°	0.008°	0.005°	0.012°	0.008°
Heading - Dual antenna (2m baseline)	0.02°	0.02°	0.01°	0.05°	0.025°
Heading - Dual antenna (4m baseline)	0.01°	0.01°	0.01°	0.04°	0.025°
Position (X/Y)	1 m	0.01 m + 0.5 ppm	0.01 m + 0.5 ppm	4 m	0.15 m
Altitude (Z)	1 m	0.015 m + 1 ppm	0.015 m + 1 ppm	0.75 m	0.05 m
Heave - Marine Applications
	Accuracy	Wave Period	Remarks
Real-time Heave	5 cm or 5 %	Up to 20 seconds	Automatic adjustment to every sea conditions
Delayed Heave	2 cm or 2 %	Up to 40 seconds	Internal computation
Sensor Performance
	Accelerometers	Gyroscopes
Measurement range	10 g	200 °/s
Bias in-run instability	< 30 μg (Land and Air) < 7 μg (Marine)	< 0.08 °/hr (Land and Air) < 0.05 °/hr (Marine)
Random walk	< 30 μg/√Hz	< 0.012 °/√hr
Interface
Aiding (input)	For Land and Air versions: 2x GNSS, RTCM, DVL, Odometer For Marine Version: 2x GNSS, RTCM, DVL
Protocols:	Output: NMEA, ASCII, Binary, TSS, Simrad Input: NMEA, Trimble, Novatel, Septentrio, Hemisphere, Fugro, PD0, PD6
Output Rate:	0.1 to 200 Hz
Logging Capacity:	8GB or 48h @ 200 Hz
Serial RS-232/422:	2 outputs / 4 inputs
CAN:	1 CAN 2.0 A/B bus up to 1 Mbit/s
Pulses:	Inputs: PPS, Event marker up to 1 kHz Outputs: SyncOut, Trigger 5 inputs / 2 outputs
Ethernet:	Full Duplex (10/100 Base T) PTP Grand Master Clock NTRIP v1/v2 client
Mechanical & electrical specifications
Operating voltage:	9 to 36 VDC
Power consumption:	< 5 W Single antenna \| < 6 W Dual antenna
Weight (g):	<900g
Dimensions (LxWxH):	130 mm x 100 mm x 75 mm

What Is the Apogee-D: INS/GNSS for Compact Spaces Used For?

Land Mobile Mapping
Aerial Survey
Hydrography
Unmanned Sea Vehicles (USV)
Boat Motion Monitoring
Antenna Pointing

Product Line

Model	Apogee-A Motion & Heave	Apogee-E Externally-aided INS	Apogee-D INS/GNSS
Roll, Pitch, Heading	✓	✓	✓
Navigation		✓	✓
GNSS receiver		Connect to any external survey-grade GNSS receiver	Single or Dual Antenna L1/L2/L5 GPS, GLONASS, GALILEO, BEIDOU
RTK			✓
Post-processing (raw data)			✓
External Aiding	Connect to external GNSS data to enhance computed roll, pitch, heading and heave measurements	Up to two external GNSS receivers, Odometer (DMI), DVL input for marine version	Up to two external GNSS receivers, Odometer (DMI), DVL input for marine version
