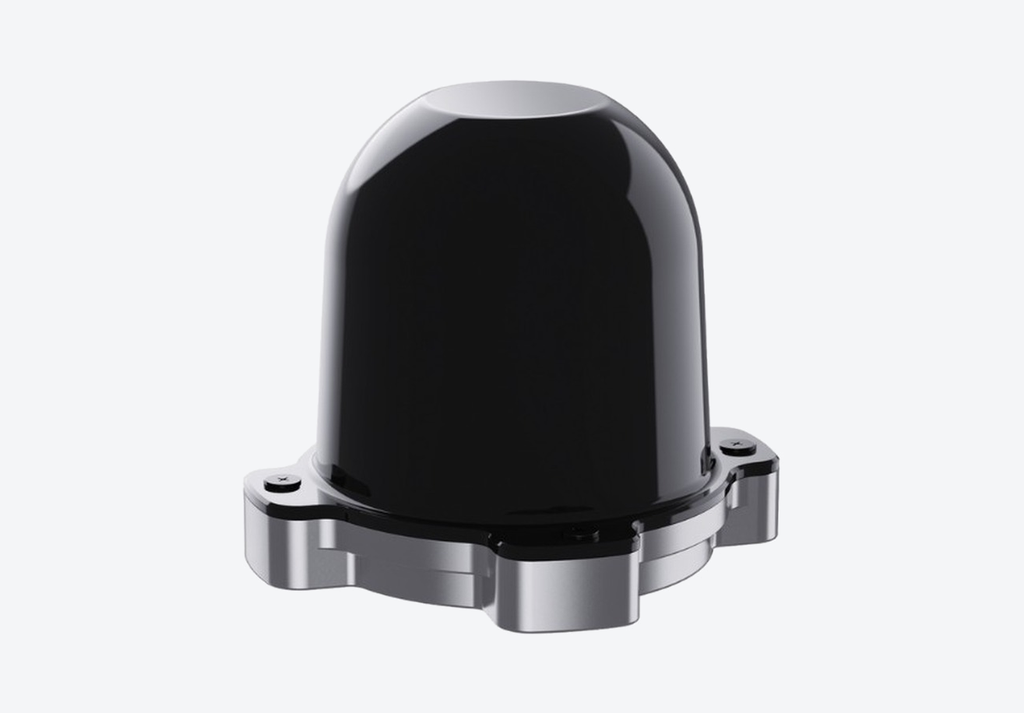

Hesai JT32 is a 32-channel mechanical lidar covering 360° horizontally and 42.61° vertically, from -10.13° to +32.48°. It reaches 40 m at 10% reflectivity across its central channels and holds 1 cm typical ranging precision, returning 192,000 points per second over standard 100BASE-TX Ethernet. At 199.7 g, 64 mm tall and 7.5 W, it suits compact robotics platforms where a full-size spinning lidar will not fit.

Why Choose the JT32 360° x 42.6° 3D Lidar?

• 32 channels across a 42.61° vertical field of view

• 1 cm typical ranging precision (1σ)

• 40 m at 10% reflectivity on channels 9 to 24

• 199.7 g and 64 mm tall — fits compact robot platforms

• 7.5 W from a DC 12 to 16 V supply

• IP6K6 sealed housing

• Class 1 eye-safe 905 nm laser

What Is the JT32 360° x 42.6° 3D Lidar Used For?

Typical applications of the JT32 360° x 42.6° 3D Lidar include:

• Autonomous vehicles, robotaxis and shuttle perception systems

• ADAS development, validation and data collection vehicles

• Mobile robotics, AGVs, AMRs and delivery robots

• Smart infrastructure, V2X and roadside perception units

• HD mapping, surveying and digital-twin data acquisition

Frequently Asked Questions

What is the JT32 360° x 42.6° 3D Lidar?

Hesai JT32 is a compact 32-channel mechanical lidar with a 360° × 42.61° field of view, 1 cm typical ranging precision and 192,000 points per second, in a 199.7 g housing drawing 7.5 W.

Is the JT32 360° x 42.6° 3D Lidar suitable for autonomous vehicle projects?

Yes. The JT32 360° x 42.6° 3D Lidar produces real-time 3D point cloud data used for object detection, obstacle avoidance and localization in autonomous driving and robotics stacks, and it integrates with common perception frameworks such as ROS-based pipelines and Autoware.

Where is the JT32 360° x 42.6° 3D Lidar available?

The JT32 360° x 42.6° 3D Lidar is available through Leo Drive in the following region: Turkey. For other regions, please contact Leo Drive.

How can I get the datasheet and technical documents for the JT32 360° x 42.6° 3D Lidar?

The user manual for the JT32 360° x 42.6° 3D Lidar is attached to this page. Please contact Leo Drive for the datasheet, integration support and any further technical documentation.

Explore More at Leo Drive

The JT32 360° x 42.6° 3D Lidar is part of the LiDAR Sensors range at Leo Drive. Browse all autonomous vehicle sensors and components, or talk to our engineering team about integration in your project.
